Metrics and Logging

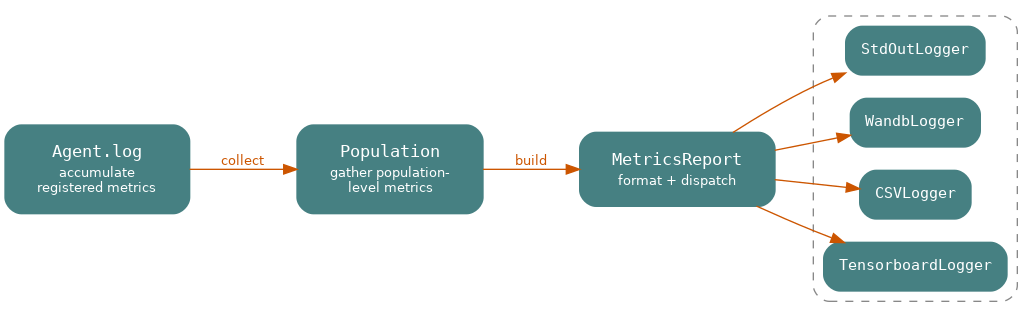

AgileRL provides a structured metrics and logging system built on three layers:

Each algorithm instance owns a AgentMetrics (or MultiAgentMetrics) object that logs steps, scores, fitness, and any additional algorithm-specific scalars or histograms. Population collects these per-agent metrics into a MetricsReport every evolution step and dispatches it to all configured logger backends simultaneously.

Note

If you are using LocalTrainer or the off-the-shelf training functions, all of this is handled automatically. The sections below are relevant when writing custom training loops or when you need fine-grained control over what gets logged.

Logger Backends

All loggers implement a simple write(report) / close() interface. You can use any combination simultaneously:

Backend	Description
StdOutLogger	Renders a Rich table to the console via tqdm.write().
WandbLogger	Logs the flat metrics dict to Weights & Biases. Auto-initialises a run if needed.
CSVLogger	Appends one row per evolution step to a CSV file for offline analysis.
TensorboardLogger	Writes scalars and histogram distributions to TensorBoard event files.

Example

Below is a minimal training loop showing how to configure metrics and logging with a Population:

 import numpy as np
 import torch

 from agilerl.algorithms import DQN
 from agilerl.components import ReplayBuffer
 from agilerl.components.data import Transition
 from agilerl.hpo.mutation import Mutations
 from agilerl.hpo.tournament import TournamentSelection
 from agilerl.logger import StdOutLogger, WandbLogger, CSVLogger
 from agilerl.population import Population
 from agilerl.utils.utils import default_progress_bar, make_vect_envs

 device = torch.device("cuda" if torch.cuda.is_available() else "cpu")

 # Environment
 num_envs = 8
 env = make_vect_envs("LunarLander-v3", num_envs=num_envs)

 # Algorithm hyperparameters
 init_hp = {
     "batch_size": 128,
     "lr": 1e-3,
     "gamma": 0.99,
     "learn_step": 1,
     "tau": 1e-3,
 }

 # Initialize population
 population_size = 4
 pop = DQN.population(
     size=population_size,
     observation_space=env.single_observation_space,
     action_space=env.single_action_space,
     device=device,
     **init_hp,
 )

 # Replay buffer
 memory = ReplayBuffer(max_size=100_000, device=device)

 # Evo-HPO
 tournament = TournamentSelection(
  tournament_size=2,
  elitism=True,
  population_size=population_size,
 )
 mutation = Mutations(
     no_mutation=0.4,
     architecture=0.2,
     new_layer_prob=0.5,
     parameters=0.2,
     activation=0.1,
     rl_hp=0.1,
     device=device,
 )

 # Configure loggers and population
 max_steps = 200_000
 evo_steps = 5_000
 pbar = default_progress_bar(max_steps)

# The following loggers will:
# - Render a Rich table with training progress to the console via ``tqdm.write()``.
# - Log the flat metrics dict to Weights & Biases. Auto-initialises a run if needed.
# - Append one row per evolution step to a CSV file for offline analysis.
 loggers = [
     StdOutLogger(pbar=pbar),
     WandbLogger(project="AgileRL"),
     CSVLogger("training_metrics.csv"),
 ]

 population = Population(agents=pop, loggers=loggers)

 # Training loop
 epsilon = 1.0
 while population.all_below(max_steps):
     for agent in population.agents:
         agent.init_training_step()

         obs, info = env.reset()
         scores = np.zeros(num_envs)
         completed_episode_scores = []
         steps = 0

         for idx_step in range(evo_steps // num_envs):
             action = agent.get_action(obs, epsilon)
             epsilon = max(0.1, epsilon * 0.999)
             next_obs, reward, done, trunc, info = env.step(action)

             scores += np.array(reward)
             for idx, (d, t) in enumerate(zip(done, trunc)):
                 if d or t:
                     completed_episode_scores.append(scores[idx])
                     scores[idx] = 0

             # Store transition in replay buffer
             transition = Transition(
                 obs=obs, action=action, reward=reward,
                 next_obs=next_obs, done=done,
             ).to_tensordict()
             transition.batch_size = [num_envs]
             memory.add(transition)

             # Learn from buffer
             if len(memory) >= agent.batch_size:
                 experiences = memory.sample(agent.batch_size)
                 agent.learn(experiences)

             obs = next_obs
             steps += num_envs

         agent.add_scores(completed_episode_scores)
         agent.finalize_training_step(steps)
         pbar.update(evo_steps // population.size)

     # Evaluate
     for agent in population.agents:
         agent.test(env, max_steps=1000, loop=3)

     # Report metrics to all backends, then evolve
     population.increment_evo_step()
     population.report_metrics(clear=True)

     if population.should_stop(target=200.0):
         break

     elite, new_pop = tournament.select(population.agents)
     population.update(mutation.mutation(new_pop))

 population.finish()
 pbar.close()
 env.close()

The init_loggers() utility can also construct all backends from simple flags, matching what the built-in train_* functions use internally:

from agilerl.utils.utils import init_loggers

loggers = init_loggers(
    algo="DQN",
    env_name="LunarLander-v3",
    pbar=pbar,
    verbose=True,
    wb=True,
    tensorboard=True,
    csv=True,
)

See also

• Metrics – API reference for AgentMetrics and MultiAgentMetrics

• Logger – API reference for all logger backends

• Population – API reference for Population, PopulationMetrics, and MetricsReport

• Trainers – The LocalTrainer handles metrics and logging automatically
